Floor Shot blasting Machine

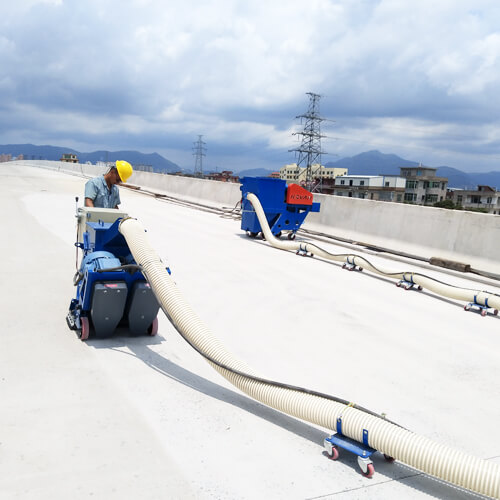

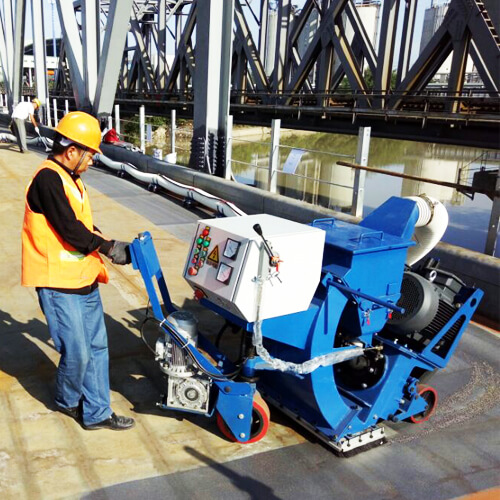

Floor shot blasting machine made by Rovan is widely used for floor, concrete, steel, tunnel and bridge surface cleaning. Concrete road and steel bridges shot blasting machine is a cost-effective and environment friendly method for preparing concrete and steel surfaces. Floor shot blasting machine leaves the surface immediately ready for application of coatings or overlays-eliminating while other traditional preparations methods need long drying time and costly disposal procedures. Shot blasting is the preferred method of surface preparation, then we can reduce coating failure and maximum floor service life.
4800DH shot blasting machine — large driving shot blasting equipment driven by diesel engine.The driving type machine adopts the integrated design of shot blasting device and dust collection system, which gets rid of the dust removal connection pipe of the traditional hand-supported shot blasting equipment, and makes the equipment transportation and operation more flexible and convenient.
Product Advantage
1.Environmental Protection: all the dust from the processing surfaceis all
saved by the dust collector.
2.Energy saving: all the steel grits can be recyled and the consumption rate is low,so youdon't need to purchase ssteel grits often.
3.Safety: the machine is easy to operate and the specific design protect operators from injury.
4.High efficiency: the cleaning speed can be adjusted according to you specific requirements
5.Easy operation: the machine is manufactured based on practical experience and we can also arrange technical personnel to train the workers.
Type | ROPW-270 | ROPW-350 | ROPW-550 | ROPW-850 | ROPW-1000 | ROVH350 |
Shot blast cleaning range(mm) | 270 | 350 | 550 | 850 | 1000 | 350 |
Blast motor power(kw) | 11 | 15 | 2*11 | 2*15 | 2*18.5 | 15 |
Steel shot consume(g/m²) | ~10 | ~10 | ~10 | ~10 | ~10 | ~10 |
ROPW270 Cleaning efficiency |
concrete surfaces≥180m²/h steel plate surfaces 15-25 m²/h SA2.5 depends on steel plate corrosion degree |
|||||
ROPW350 Cleaning efficiency |
concrete surfaces≥280m²/h steel plate surfaces 60-80 m²/h SA2.5 depends on steel plate corrosion degree |
|||||
ROPW550 Cleaning efficiency |
concrete surfaces≥400m²/h steel plate surfaces 75-100 m²/h SA2.5 depends on steel plate corrosion degree |
|||||
ROPW850 Cleaning efficiency |
concrete surfaces≥600m²/h steel plate surfaces 100-160 m²/h SA2.5 depends on steel plate corrosion degree |
|||||
ROPW1000 Cleaning efficiency |
concrete surfaces≥800m²/h steel plate surfaces 120-200 m²/h SA2.5 depends on steel plate corrosion degree |
|||||
ROVH350 Cleaning efficiency |
concrete surfaces≥280m²/h steel plate surfaces 60-80 m²/h SA2.5 depends on steel plate corrosion degree |
VERTICAL |
