Have you ever seen concrete shot blasting machines used in many fields? So, what is the working principle of concrete shot blasting machines? If you want to understand concrete shot blasting machines, this question is something we must figure out. Let Qingdao Runfang Machinery explore with everyone.

The concrete shot blasting machine mainly solves the defects of the concrete surface treatment. It can clean up the floating slurry and impurities on the concrete surface at one time. It can also roughen the surface of the concrete to make the surface uniform and rough, which greatly improves the waterproof layer. Adhesive strength to the concrete base layer, so that the waterproof layer and the bridge deck can be better combined, and at the same time, it can fully expose the concrete cracks and play a preventive role.

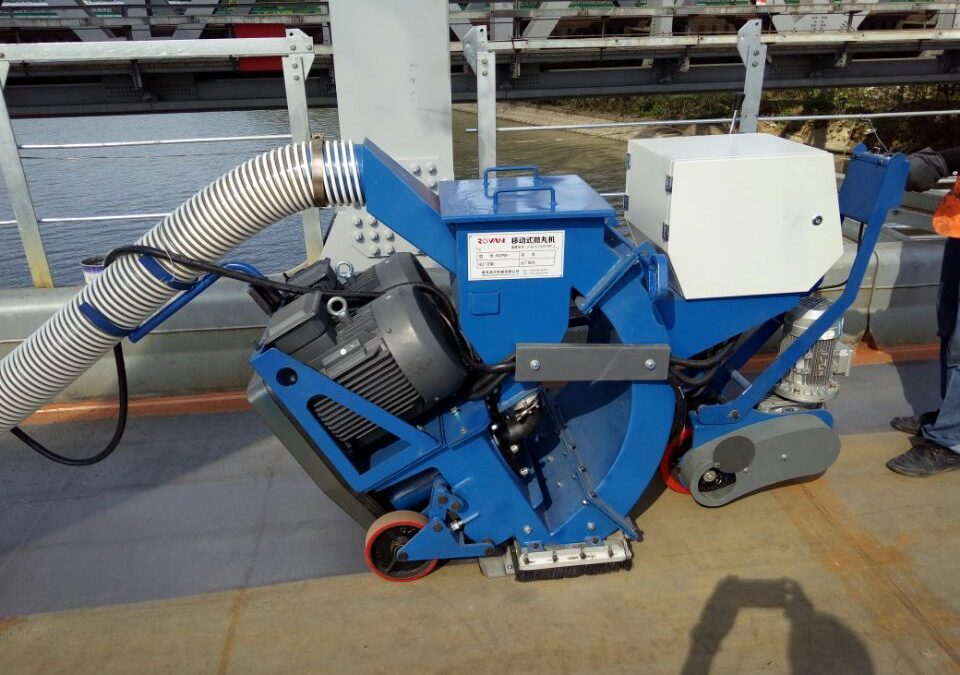

The concrete shot blasting machine uses a motor-driven shot blasting wheel to generate centrifugal force and wind during high-speed rotation. When a certain particle size of projectile flows into the blasting tube (which can control the flow of the projectile), it is accelerated and brought into the high-speed rotating blasting wheel. In the process, under the action of centrifugal force, the projectile is thrown into the directional sleeve through the window of the dividing wheel, and then thrown out through the window of the directional sleeve (to control the throwing direction of the pellets), picked up by the high-speed rotating blade, and along the length of the blade The direction continues to accelerate until it is thrown, and the thrown projectile forms a certain fan-shaped stream, which impacts the working plane to play a role of cleaning and strengthening. Then the projectiles, dust and impurities pass through the rebound chamber to the top of the storage hopper. The high-power dust collector separates the pellets and dust through the separation device above the storage hopper. The pellets enter the storage hopper to continue recycling, and the dust enters the dust collector through the connecting pipe. When the dust enters the dust collector, it passes through the separation of the filter element and stays in the ash storage hopper and on the surface of the filter element. The automatic back-blowing dust collector can automatically clean each filter element at intervals through the back-blowing air provided by the compressor. Finally, the inside of the machine is cleaned by the airflow of the matching vacuum cleaner, the pellets and the cleaned impurities are recovered separately, and the pellets can be reused. The shot blasting machine is equipped with a dust collector, which can achieve dust-free and pollution-free construction, which not only improves efficiency, but also protects the environment.
